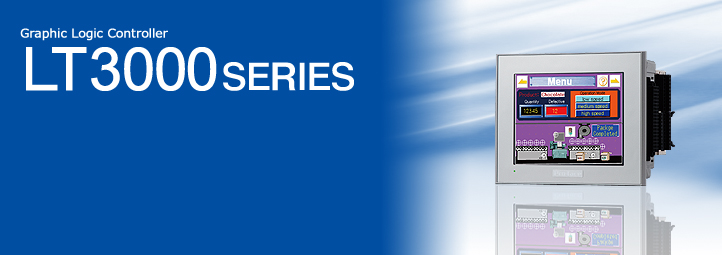

Серия LT3000: особенности

Оформить заказ или подобрать продукцию PROFACE позвонив по телефону +7 (812) 432-38-38, или написав письмо по электронной почте sales@acs-spb.ru.

•Компактные ПЛК с 5.7- или 3.8-дюймовым сенсорным экраном
•Совмещают в себе функции отображения и управления
•Благодаря встроенному USB-интерфейсу можно использовать USB флэш-память для сохранения изображений и отчетов
•Имеют встроенные 16 входов и 16 выходов (12 входов и 6 выходов для 3.8-дюймовой модели)
•Транзисторные выходы позволяют формировать импульсы с частотой до 65 кГц. А входы могут использоваться как высокоскоростные счетчики импульсов (стандартно 100 кГц)
•Дополнительные возможности: можно вставить до 3 модулей расширения из 13 типов (модули дискретного и аналогового ввода/вывода с различным числом каналов)
•Могут использоваться как мастер в CANopen-сетях
•Имеют также последовательный интерфейс и Ethernet-порт
New I/O Modules with expanded I/O points
EX Module Catalog (PDF)

EX Module Flyer

In order to reduce costs, multipoint Analog/Digital I/O are built into a single EX module. They can be used for a variety of applications.

PDF: 647KB

LT3000 SERIES Quick-Start Manual
LT3000 Series Quick Guide

LT3000 SERIES Quick-Start Manual

This Users Manual includes a LT3000 summary, software operation methods and focus points.

PDF: 3,344KB

PDF Catalog
LT3000 Series Catalog (PDF)

LT3000 Series

LT3000 Series - Main Units

Display Memo Product Part Number
Size
3,8"   3.8" Monochrome Amber/Red LCD New LT Compact TypeA2 12-in/6-source-out DC24V (CE/UL/CSA) LT3201-A1-D24-C
5,7"   5.7-inch Monochrome LCD, QVGA 320 x 240 pixels, Interface: SIO, 16-Point Input, 16-Point Output (Source), Expansion slot x 3, Rated voltage: DC24V LT3301-L1-D24-C
    5.7-inch Monochrome LCD, QVGA 320 x 240 pixels, Interface: Ethernet, SIO, 16-Point Input, 16-Point Output (Source), Expansion slot x 3, Rated voltage: DC24V LT3300-L1-D24-C
    5.7-inch STN color LCD, QVGA 320 x 240 pixels, Interface: Ethernet, SIO, 16-Point Input, 16-Point Output (Source), Expansion slot x 3, Rated voltage: DC24V LT3300-S1-D24-C




LT3000 Series - Option

  Memo Product Part Number
Modules    Ex Module (8 Points Input)   EXM-DDI8DT
     Ex Module (16 Points Input)   EXM-DDI16DT
     Ex Module (8 Points Relay Output)   EXM-DRA8RT
     Ex Module (16 Points Relay Output)   EXM-DRA16RT
     Ex Module (8 Points Sink Output)   EXM-DDO8UT
     Ex Module (8 Points Source Output)   EXM-DDO8TT
    Ex Module (16 Points Sink Output) not included MIL connector EXM-DDO16UK
    Ex Module (16 Points Source Output) not included MIL connector EXM-DDO16TK
     Ex Module (4 Points Input/4 Points Relay Out)   EXM-DMM8DRT
     Ex Module (16 Points Input/8 Points Relay Out)   EXM-DMM24DRF
     Ex Module (2ch Analog Input)   EXM-AMI2HT
     Ex Module (4ch Analog Input)   EXM-AMI4LT
     Ex Module (8ch Analog Input)   EXM-ARI8LT
     Ex Module (2ch Temp. Input/1ch Analog Out)  EXM-ALM3LT
     Ex Module (2ch Analog Input/1ch Analog Out)  EXM-AMM3HT
     Ex Module (4ch Analog Input/2ch Analog Out)  EXM-AMM6HT
     Ex Module (1ch Analog Output)  EXM-AMO1HT
     Ex Module (2ch Analog Output)  EXM-AVO2HT
Options   MIL Connector for LT3201A (20pins, 5pcs) CA6-EXMCNHE20P-01
     DIO Connector for LT3201A (5pcs)  CA6-DIOCN4-01
    Terminal Connector for LT3000 series (11pins, 5pcs) CA6-EXMCNRS11P-01
    Terminal Connector for LT3000 series (10pins, 5pcs) CA6-EXMCNRS10P-01
    USB cable Clamp CA7-USBAT6-01
    DIO Connector for LT3300 series (Set of 5 pcs.) CA7-DIOCN5-01
    EX Module Securing Hook for LT3300 series CA7-FIXEXM-01
    CAN open Master Unit for LT3000 CA8-CANLT-01
LT3000 Wiring Module & Cable by 3rd party Module  Eurogi Module 8 I/O (8 input/output with LED)   71E036002
     Eurogi Module 16 I/O (16 input/output with LED)   71E036004
     Eurogi Module 8 O/R (8 output Relay 12A with LED)   71E036031
     Eurogi Module 16 O/R (16 output Relay 12A with LED)   71E425656
  Cable  Wirng cable with 3 connectors (2 modules max) for LT3201A (3m)  71E026900(3)
     Extra Length per 1m  (on demand order: min. order QTY: over 10 unit /shipment)  71E026900(3+*m)
     Wiring cable with 3connectors (2 modules max) for LT3300 (3m)  71E026901(3)
     Extra Length per 1m  (on demand order: min. order QTY: over 10 unit /shipment)  71E026901(3+*m)
     Wiring cable with 4 connectors (3 modules max) for LT3300 (3m)  71E026902(3)
     Extra Length per 1m  (on demand order: min. order QTY: over 10 unit /shipment)  71E026902(3+*m)




LT Series - Main Units

Display Memo Product Part Number
Size
6" Blue Mode 6" Blue Mode LT Type A, 16 D-In & 16 D-Out(Source) points, CE, UL/CSA GLC150-BG41-XY32SC-24V
    6" Blue Mode LT Type B, Built-in Flex Network Master, CE, UL/CSA GLC150-BG41-FLEX-24V
    6" Blue Mode LT Type C, Flex Network Master and SIO, CE, UL/CSA GLC150-BG41-RSFL-24V
